Horizontal Anchorage Lifeline

The Horizontal Anchorage Lifeline is designed to provide a safe and secure anchorage system extending horizontally along a specified length.

Design

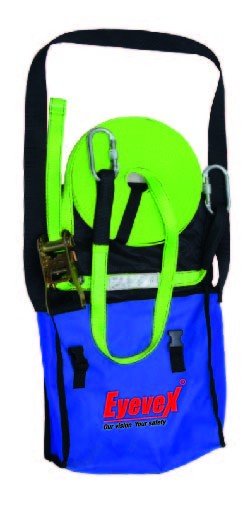

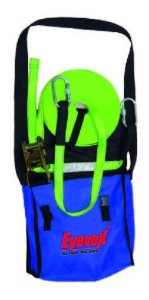

The ETL 2000-20M is a horizontal anchorage lifeline made of 30 mm polyester webbing. It is equipped with a ratchet tensioner, allowing easy tensioning of the lifeline between two supports.

Both ends are provided with karabiners (ESF-1102) for secure attachment.

Webbing

• Material: Polyester

• Width: 30 mm ± 1 mm

• Breaking Strength: 25 kN

Stitching Thread

• Material: High-tenacity polyester

Metal Components

• Material: Alloy steel

• Finish: Silver or golden yellow galvanized

Capacity Range

• 18 kN + 1 kN for each additional user

Relevant Standards

Meets or exceeds:

• EN 795:2012

• CEN/TS 16415:2013
